Austin, Texas
Known for hosting everything from elegant dinners and cocktail hours to intimate live performances and high-energy DJ sets, Jupiter Supper Club needed a high-end AV system to match its dynamic programming and upscale ambiance.
Located in a beautifully restored downtown Austin building, Jupiter Supper Club offers an elevated dining and entertainment experience defined by precision, style, and sound. The space welcomes members and guests into four richly appointed spaces: the Bar, the Library Lounge, the Terrace restaurant, and the intimate Nova Lounge live‑music room.
To achieve an audio experience worthy of the club’s lofty aspirations, Ford AV and Meyer Sound’s design team commissioned a turnkey system that marries luxury finishes with world‑class performance.
Designing for a High-End Experience
The Jupiter Supper Club founders wanted more than background music; they envisioned a fully immersive, multi‑sensory environment where sound felt as deliberate and refined as the cuisine and décor. This required an AV solution that could:
Deliver even, unobtrusive coverage in every room, from the main Bar to tucked‑away corridors and restrooms, without visible equipment disrupting the interior design.
Support a wide range of events, from unamplified jazz trios and singer‑songwriter showcases to DJ sets and private receptions, all within the same rooms.
Offer intuitive control for staff, creating simple transitions between dining service, live performances, and ambient playlists.
Blend aesthetically with custom finishes, fabrics, and lighting, preserving the club’s luxury style.
These requirements meant integrating dozens of speakers and zones into historic architecture and programming a control system flexible enough for both non‑technical staff and professional performers.
Audio Systems Built for Atmosphere and Flexibility
Distributed Audio System: Seamless Coverage, Invisible Speakers

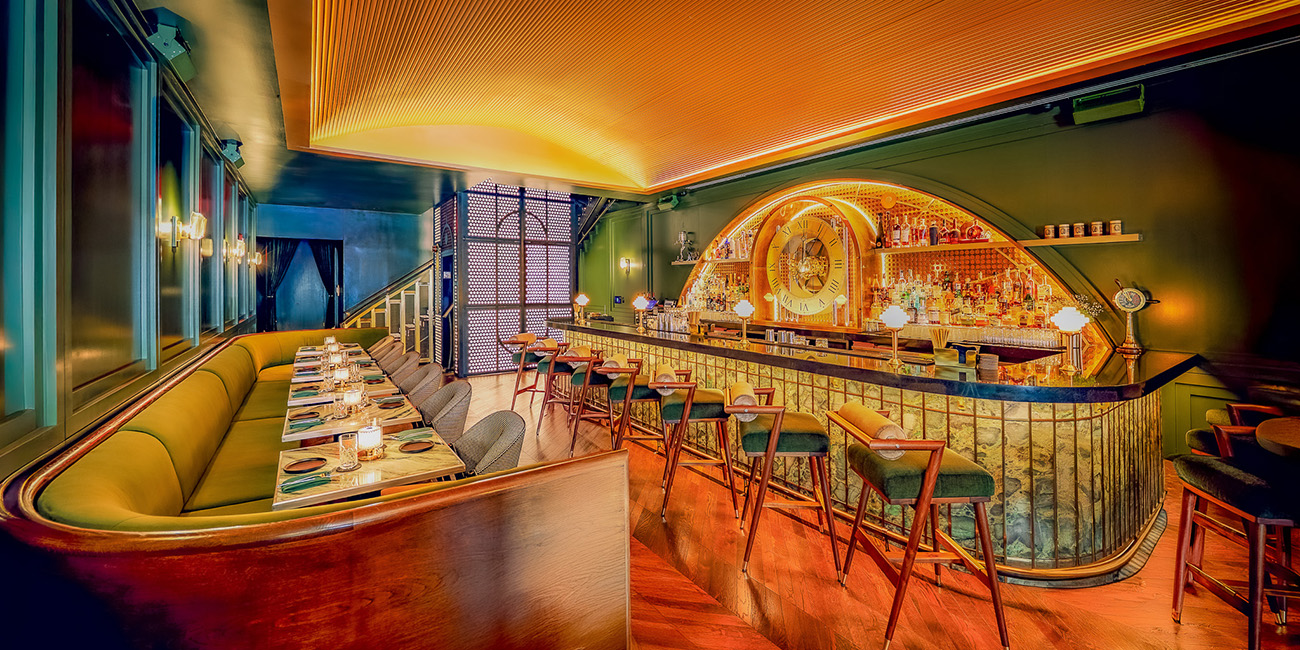

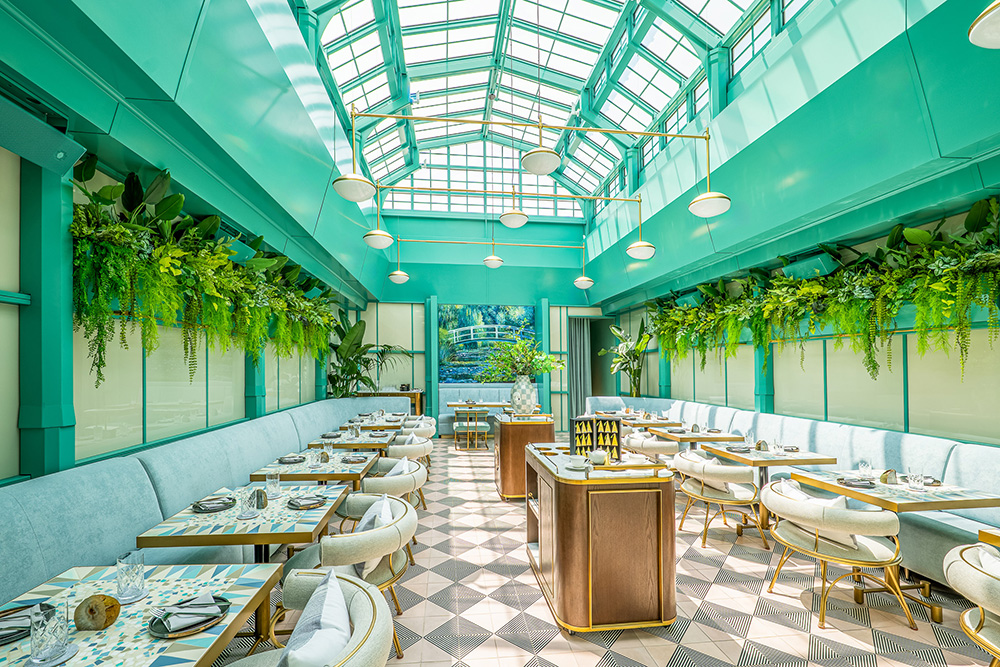

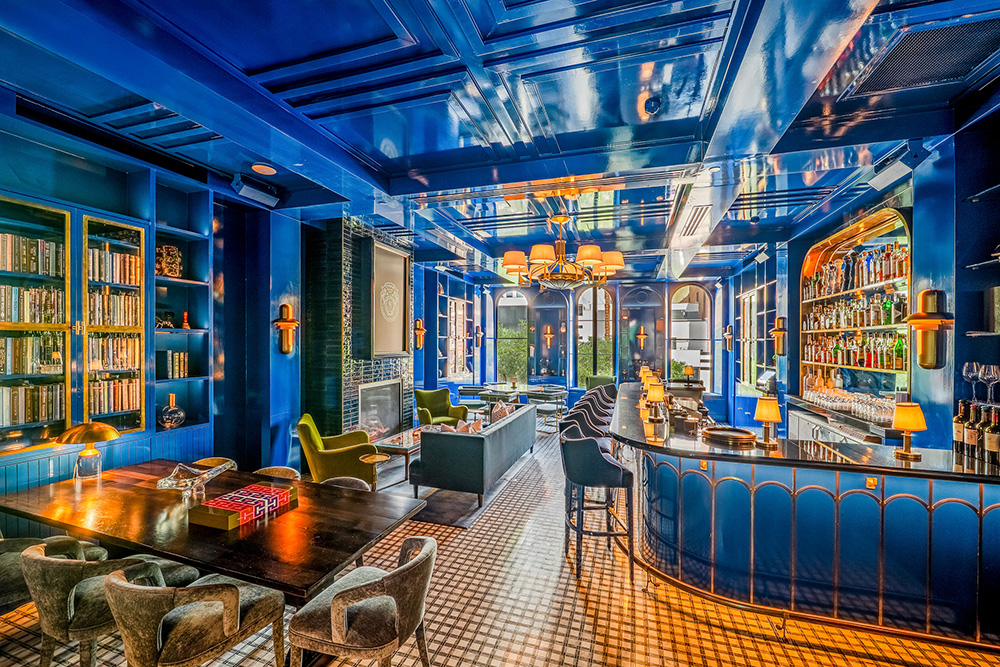

More than 75 flush‑mounted speakers were deployed throughout the club, each carefully selected and custom‑painted to blend with the décor. The Bar features seven ultra‑compact overhead loudspeakers that deliver clear, warm sound without drawing attention. Corridors, stairwells, and restrooms received four‑inch two‑way drivers to ensure consistent coverage from front door to back hallway. Upstairs, the Library Lounge and Terrace restaurant rely on Meyer Sound’s UP‑4Slim and ULTRA‑X22 enclosures, compact enough to disappear into ornate ceilings while filling the space with rich, detailed audio.
Control System & Zoning: Effortless Ambiance Management
To give staff control over the sprawling audio network, a Crestron CP4N processor paired with TSW‑1070‑B‑S 10″ touch panels was implemented in key locations. Bar and service personnel can select preconfigured “scenes” for brunch, dinner, or evening entertainment, instantly adjusting multiple zones to the appropriate volume, source, and EQ settings. Bluetooth input plates and Dante I/O wall interfaces in the DJ vestibule and Nova Lounge allow performers to connect without accessing the central rack, giving DJs and live acts a hassle-free way to plug in and take over the sound.
This zoning architecture keeps background music unobtrusive during dining service, then shifts to full‑band mixes when performers arrive, all via simple onscreen buttons. With on‑site training and customized documentation, even the non‑technical staff can feel confident managing complex audio scenes.

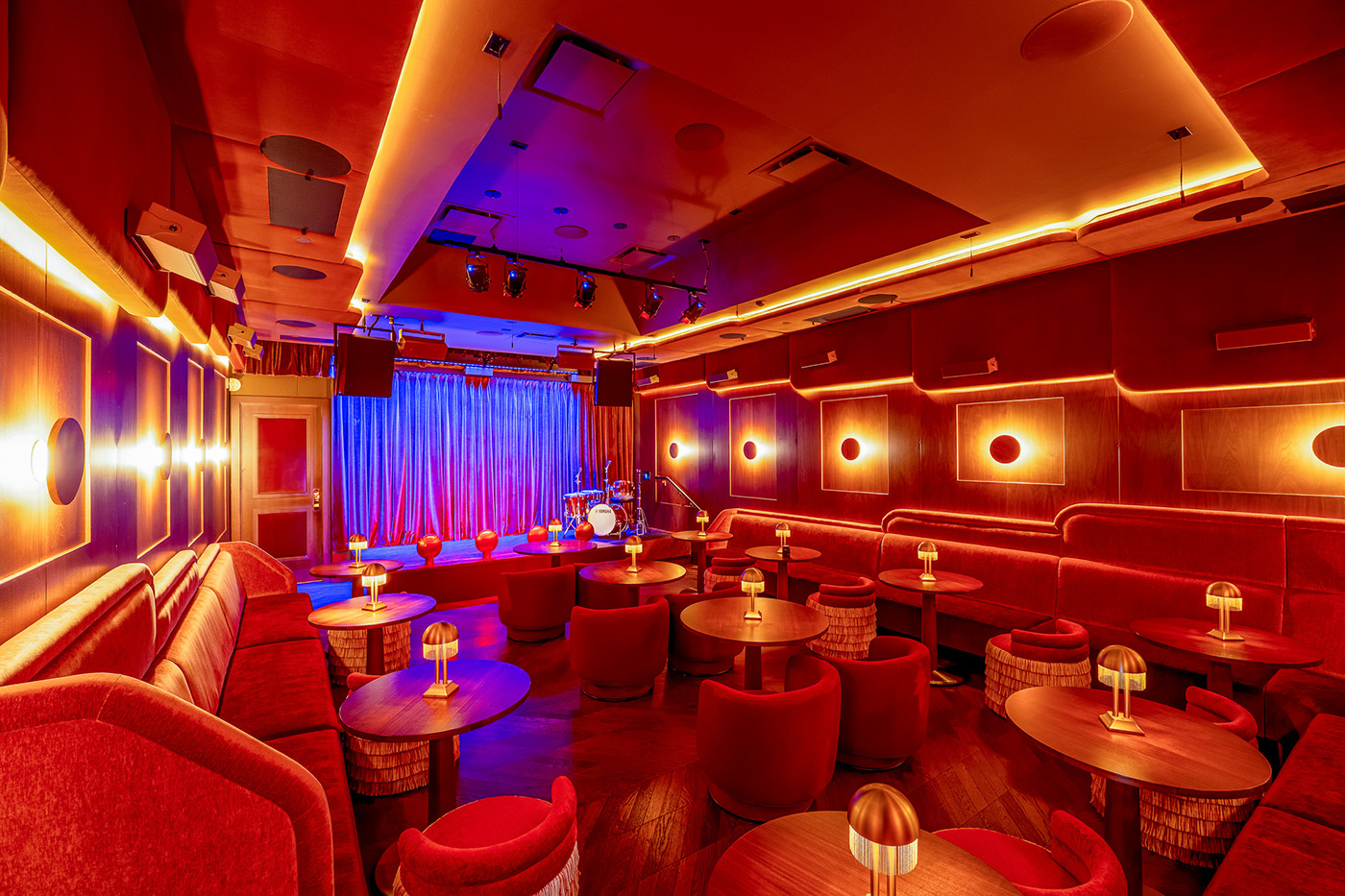

Nova Lounge: Hybrid Constellation Acoustics
The Nova Lounge is the crown jewel of Jupiter Supper Club’s AV design. Seating just thirty, the room houses one of Meyer Sound’s smallest hybrid Constellation active‑acoustics systems ever installed. Hidden microphones and twelve Ashby‑8C ceiling loudspeakers, sixteen UP‑4Slim installation units, and six MM‑10™ subwoofers feed into the NADIA‑CP processing platform.
With nine user‑selectable acoustic presets, expandable as the club’s programming evolves, the room can transform from a dry, intimate jazz parlor to a lush, reverberant environment for electronic or DJ sets.
“We wanted to create an environment that could be whatever we wanted it to be without having to think about the future. One of the things that the Constellation system allows us to do is to shape the room sonically any way we want. Right now, we have nine presets, but as we get going, those nine buttons might be 25. It’s a playground.”
— Bill Perkins, Jupiter Supper Club
Wireless personal monitors and a digital remote mixer let artists customize their on‑stage mix, while a lighting server and LED fixtures complete the fully immersive performance experience.
“The room is so intimate that performers can sing completely acoustically, and the system will still immerse the audience without excessive volume. The first time we ran a demo, musicians were stunned—they’d never heard anything like it.”
— Jon Atkinson, Ford AV
Defining Atmosphere Through Exceptional AV
Since opening, Jupiter Supper Club’s audio installation has become a defining element of the guest experience. Attendees praise how the sound system envelops without ever overpowering conversation. Performers appreciate low stage volume combined with pristine monitoring, fostering intimate connections with audiences. Staff routinely commend the Crestron interface’s simplicity and the rock‑solid reliability of the UPS‑protected infrastructure.
“Both artists and guests have been blown away by how good it sounds,” says Perkins. “It’s immersive without cranking the volume—more like a warm bath of sound than just blasting music at you.”
— Bill Perkins, Jupiter Supper Club
Although optimized for today’s diverse programming, Jupiter Supper Club’s AV backbone was built with tomorrow in mind. The Dante network, modular rack architecture, and scalable processing allow for expansion, whether adding new performance rooms, integrating live‑streaming capabilities, or reconfiguring zones. This ensures the club’s sensory experience remains cutting‑edge without major reinvestment.
